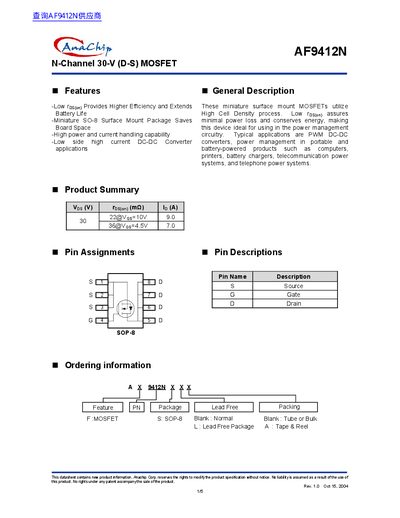

Anachip AF9412N N-Channel 30-V (D-S) MOSFET is a low-power N-channel MOSFET with a rated voltage of 30V. Typical applications include PWM DC-DC converters, power management in portable and battery-powered products such as computers, printers, battery chargers, telecommunication power systems, and telephone power systems.
The document describes the Anachip AF9412N, an N-channel 30-volt MOSFET utilizing high cell density processes to minimize power loss. It is intended for use in power management circuitry such as PWM DC-DC converters and portable battery-powered products like computers and printers.
Key features include a low on-resistance (Rds(on)) of up to 29 milliohms, available in a miniature SOP-8 surface mount package. The datasheet provides absolute maximum ratings, electrical specifications, typical performance characteristics graphs, and mechanical package dimensions.
| Gate-Source Voltage | +20 V |
|---|---|
| Package Type | SOP-8L |
The MOSFET operates and can be stored within a temperature range of -55 to 150 degrees Celsius.
