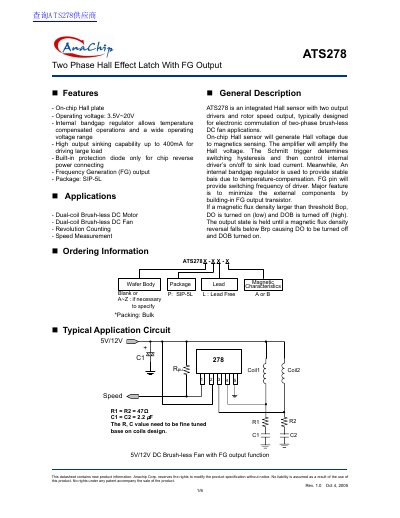

ATS278 is a single chip Hall effect latch with frequency generator (FG) output, which is designed for electronic commutation of two-phase brush-less DC fan applications.
The ATS278 is an integrated Hall sensor with two output drivers and a rotor speed output, typically designed for the electronic commutation of two-phase brushless DC fan applications. It features an on-chip Hall plate, an internal bandgap regulator for temperature compensation, and a Frequency Generation (FG) output to minimize external components.
| Operating voltage | 3.5V~20V |
|---|---|
| Output sinking capability | up to 400mA |
| Package type | SIP-5L |
| Supply voltage | 3.5V to 20V |
| Output Saturation Voltage | 800 mV |
| Supply Current | 25 mA |
| Operating temperature range | -20~+85 °C |
| Storage temperature range | -65~+150 °C |
| Package Power Dissipation | 550 mW |
| Operate Point (Grade A) | 10 - 60 Gauss |
| Release Point (Grade A) | -60 - -10 Gauss |
The device is designed for dual-coil Brush-less DC Motors, dual-coil Brush-less DC Fans, Revolution Counting, and Speed Measurement.
Yes, it has an internal bandgap regulator that allows for temperature compensated operations and a wide operating voltage range.
The device has a high output sinking capability of up to 400mA for driving large loads.
