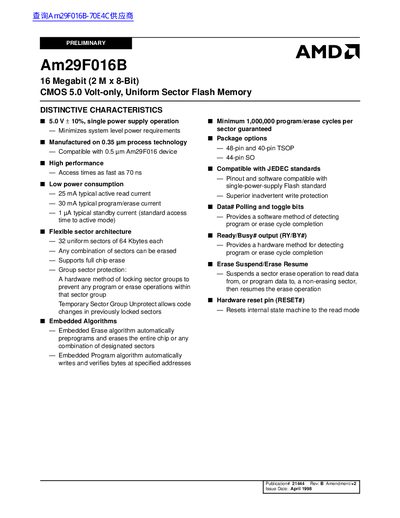

AMD Am29F016B 16 Megabit (2 M x 8-Bit) CMOS 5.0 Volt-only Uniform Sector Flash Memory

About this manual

The AMD Am29F016B is a 16 Megabit (2 M x 8-Bit) Flash Memory designed for single 5.0 volt operation without requiring an external programming voltage. It utilizes AMD's 0.35 um process technology to offer high performance with access times as fast as 70 ns and up to 1,000,000 program/erase cycles.

What's inside

• Distinctive Characteristics
• General Description
• Product Selector Guide
• Connection Diagrams
• Ordering Information
• AC Characteristics
• DC Electrical Characteristics
• Timing Diagrams

Frequently asked questions

What is the voltage requirement for this memory?

The device operates with a single 5.0 volt power supply and does not require a separate programming voltage.

What are the available package options?

The Am29F016B is offered in 48-pin and 40-pin TSOP packages, as well as a 44-pin SO package.
