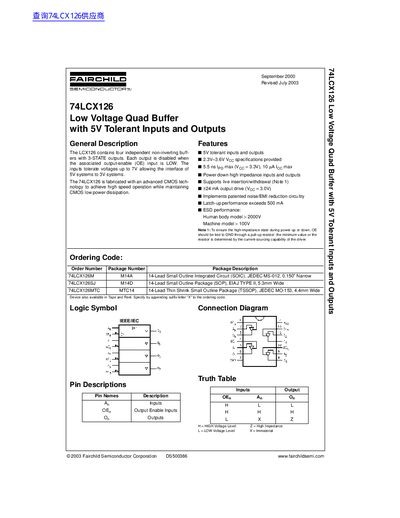

The document describes the 74LCX126 low voltage quad buffer produced by Fairchild Semiconductor Corporation. The product features 5V tolerant inputs and outputs, with each output being disabled when the associated output-enable (OE) input is low. The product is fabricated with advanced CMOS technology, achieving high speed operation and low power dissipation.
The document describes the 74LCX126, which contains four independent non-inverting buffers with 3-STATE outputs. Each output is disabled when the associated output-enable (OE) input is LOW. The device features advanced CMOS technology for high speed operation and low power dissipation.
| Supply Voltage (Operating) | 2.0V to 3.6V |
|---|---|
| Input Voltage Tolerance | -0.5V to +7.0V |
| Output Drive Current (3.0V) | ±24 mA |
| Free-Air Operating Temperature | -40°C to +85°C |
The recommended operating supply voltage (VCC) ranges from 2.0V to 3.6V.
Yes, the inputs tolerate voltages up to 7V, allowing interface of 5V systems to 3V systems.
The LCX126 contains four independent non-inverting buffers with 3-STATE outputs.
