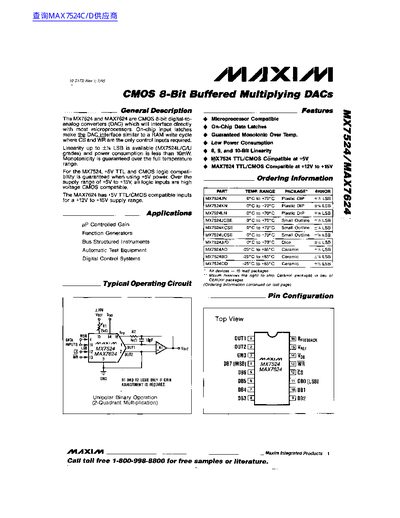

The document describes the MX7524 and MAX7624, which are CMOS 8-bit digital-to-analog converters (DACs) designed to interface directly with most microprocessors. These devices feature on-chip input latches that simplify interfacing, requiring only Chip Select (CS) and Write (WR) control inputs similar to a RAM write cycle.
| Resolution | 8 Bits |
|---|---|
| Linearity (MX7524) | +% LSB |
| Power Consumption | < 10mW |
| Operating Temperature (MX7524) | -40°C to +70°C |
| Supply Voltage Range (MX7524) | +5V to +15V |
The MX7524 guarantees +5V TTL and CMOS logic compatibility when using a +5V power supply.
The MAX7624 has +5V TTL/CMOS compatible inputs for a supply range of +12V to +15V.
Yes, monotonicity is guaranteed over the full temperature range for these devices.
