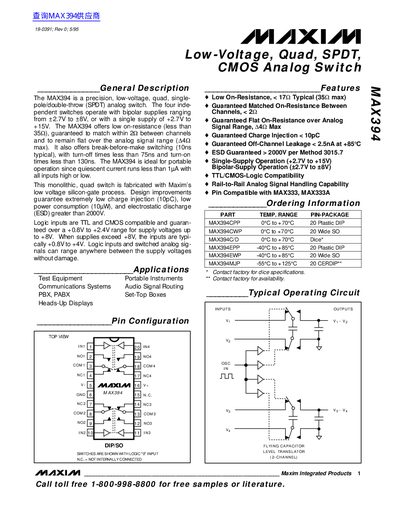

The MAX394 is a precision, low-voltage, quad, single-pole/double-throw (SPDT) analog switch. The four independent switches operate with bipolar supplies ranging from ±2.7V to ±8V, or with a single supply of +2.7V to +15V. The MAX394 offers low on-resistance (less than 35Ω), guaranteed to match within 2Ω between channels and to remain flat over the analog signal range (∆4Ω max). It also offers break-before-make switching (10ns typical), with turn-off times less than 75ns and turn-on times less than 130ns. The MAX394 is ideal for portable operation since quiescent current runs less than 1µA with all inputs high or low. This monolithic, quad switch is fabricated with Maxim’s low voltage silicon-gate process. Design improvements guarantee extremely low charge injection (10pC), low power consumption (10µW), and electrostatic discharge (ESD) greater than 2000V. Logic inputs are TTL and CMOS compatible and guaranteed over a +0.8V to +2.4V range for supply voltages up to +8V. When supplies exceed +8V, the inputs are typically +0.8V to +4V. Logic inputs and switched analog signals can range anywhere between the supply voltages without damage.
The MAX394 is a precision, low-voltage, quad, single-pole/double-throw (SPDT) analog switch designed for portable operation. It features four independent switches that operate with bipolar supplies ranging from +2.7V to +8V or a single supply of +2.7V to +15V.
Key characteristics include low on-resistance (less than 35Ω), guaranteed matching within 2Ω between channels, and break-before-make switching. The device offers extremely low charge injection (10pC) and quiescent current less than 1pA.
| On-Resistance (Max) | < 35Ω |
|---|---|
| On-Resistance Match Between Channels | < 2Ω |
| Charge Injection (Max) | < 10pC |
| Quiescent Current (Max) | < 1pA |
| ESD Rating | > 2000V |
| Logic Input Compatibility | TTL and CMOS |
The device operates with bipolar supplies ranging from +2.7V to +8V.
It supports a single supply of +2.7V to +15V.
The turn-off time is less than 75ns and the turn-on time is less than 130ns.
