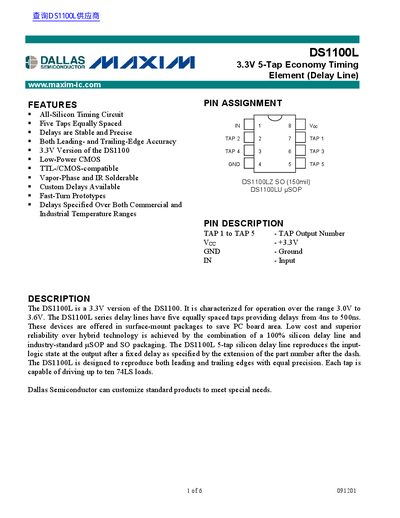

The DS1100L is a 3.3V version of the DS1100, featuring stable and precise delays and high reliability. It uses an all-silicon timing circuit with five equally spaced delay outputs, ranging from 4ns to 500ns. The product is suitable for both commercial and industrial temperature ranges, and custom delays are available.
The DS1100L is a low-power CMOS silicon delay line designed for operation over a supply voltage range of 3.0V to 3.6V. It features five equally spaced taps that provide precise and stable delays, reproducing both leading and trailing edges with equal accuracy.
| Supply Voltage Range | 3.0V to 3.6V |
|---|---|
| Number of Taps | 5 |
| Delay Range | 4ns to 500ns |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +125°C |
| Output Drive Capability | Ten 74LS loads |
The device is characterized for operation over a supply voltage range of 3.0V to 3.6V.
The DS1100L series delay lines have five equally spaced taps.
The delays range from 4ns to 500ns depending on the specific model selected.
