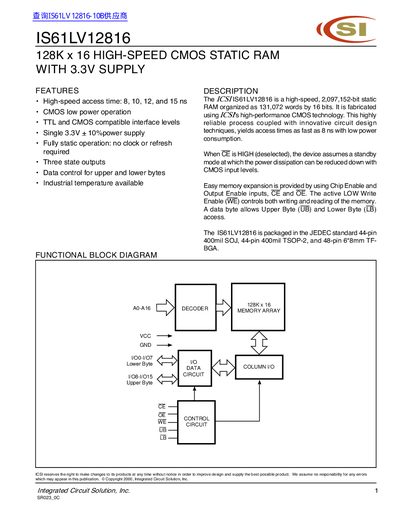

The IS61LV12816 is a high-speed, fully static 128K x 16-bit CMOS static RAM designed for operation with a single 3.3V power supply. It features access times ranging from 8 to 15 nanoseconds and offers low-power consumption in both active and standby modes.
The device supports TTL and CMOS compatible interface levels and is available in industrial temperature ranges (-40°C to +85°C). It comes in three standard packages: 44-pin SOJ, 44-pin TSOP-2, and 48-pin TF-BGA.
| Memory Organization | 131,072 words by 16 bits |
|---|---|
| Power Supply Voltage | 3.3V + 10% |
| Access Times | 8, 10, 12, and 15 ns |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Power Dissipation | 2.0 W |
The device has a total storage capacity of 2,097,152 bits.
No, it operates fully statically and does not require a clock or refresh.
It is available in 44-pin SOJ, 44-pin TSOP-2, and 48-pin TF-BGA.
