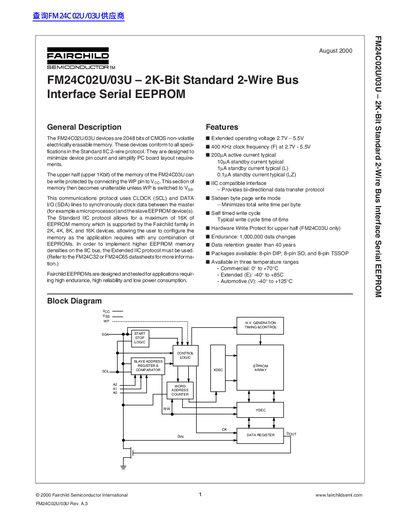

FM24C02U/03U – 2K-Bit Standard 2-Wire Bus Interface Serial EEPROM
The FM24C02U/03U devices are 2048 bits of CMOS non-volatile electrically erasable memory designed to conform to the Standard IIC 2-wire protocol. These devices minimize device pin count and simplify PC board layout requirements, with the upper half of the FM24C03U memory optionally write-protected.
The datasheet provides detailed electrical characteristics, including an extended operating voltage range of 2.7V to 5.5V and a maximum clock frequency of 400 KHz. It includes absolute maximum ratings, DC electrical parameters such as active power supply current, AC test conditions for timing waveforms, and package ordering information.
| Memory Size | 2048 bits |
|---|---|
| Operating Voltage Range | 2.7V to 5.5V |
| Maximum Clock Frequency | 400 KHz |
| Standby Current (LZ) | 0.1 pA typical |
| Endurance | 1,000,000 data changes |
| Data Retention | greater than 40 years |
The typical write cycle time is 6ms.
Yes, the upper half of the memory can be write protected by connecting the WP pin to Vcc.
The devices are available in 8-pin DIP, 8-pin SO, and 8-pin TSSOP packages.
