The ACQ/ACTQ374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-STATE outputs for bus-oriented applications. It utilizes FACT Quiet Series technology to guarantee quiet output switching and improve dynamic threshold performance.

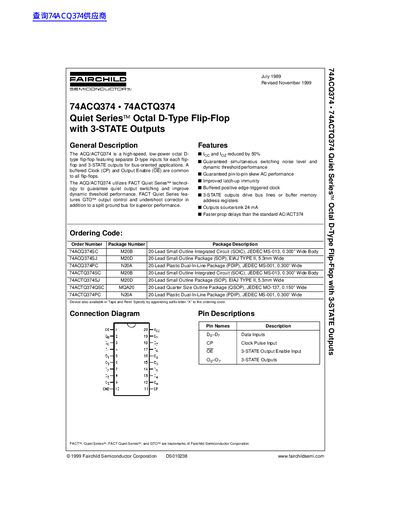

This document is a technical datasheet for the Fairchild Semiconductor 74ACQ374 and 74ACTQ374, which are high-speed, low-power octal D-type flip-flops featuring separate inputs and 3-STATE outputs. The devices utilize FACT Quiet Series technology to ensure quiet output switching and improved dynamic threshold performance.
| Supply Voltage (VCC) | -0.5V to +7.0V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Outputs Source/Sink Current | 24 mA |
| Maximum Clock Frequency (ACTQ @ 5.0V) | 85 MHz |
The device utilizes FACT Quiet Series™ technology to guarantee quiet output switching and improve dynamic threshold performance.
The device consists of eight edge-triggered flip-flops with individual D-type inputs.
