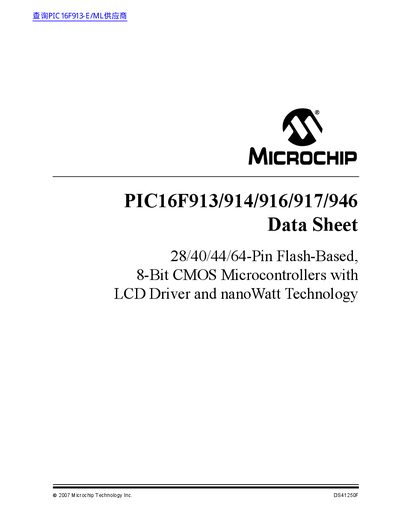

This data sheet provides detailed information on Microchip PIC16F913/914/916/917/946 28/40/44/64-Pin Flash-Based, 8-Bit CMOS Microcontrollers with LCD Driver and nanoWatt Technology.
This document provides technical specifications for the PIC16F913/914/916/917/946 family of 28/40/44/64-pin Flash-based 8-bit CMOS microcontrollers. These devices feature an integrated LCD driver and utilize Microchip's nanoWatt technology for low-power operation.
Key features include a high-performance RISC CPU with only 35 instructions to learn, operating speeds up to 20 MHz, and a precision internal oscillator factory-calibrated to +1%. The microcontrollers support a wide operating voltage range of 2.0V to 5.5V and offer industrial and extended temperature ranges.
| Operating Speed | DC - 20 MHz oscillator/clock input |
|---|---|
| Instruction Cycle | 200 ns |
| Operating Voltage Range | 2.0V-5.5V |
| Flash Endurance | 100,000 writes |
| EEPROM Endurance | 1,000,000 writes |
| Data Retention | > 40 years |
| A/D Resolution | 10-bit |
The microcontroller has only 35 instructions to learn.
The typical standby current is less than 100 nA at 2.0V.
The device supports an oscillator/clock input up to 20 MHz.
