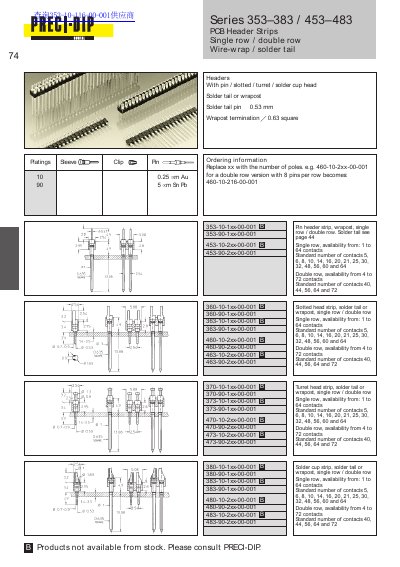

This document details the specifications for PRECI-DIP PCB header strips, including Series 353-483. It covers four main types: Pin header strip, Slotted head strip, Turret head strip, and Solder cup strip.
The product is available in single row or double row configurations with wire-wrap or solder tail terminations (specifically Wrapost). Standard contact numbers range from 1 to 64 for single rows and 4 to 72 for double rows.
| Termination types | Wrapost, Solder tail |
|---|---|
| Single row contact availability | 1 to 64 contacts |
| Double row contact availability | 4 to 72 contacts |
| Standard single row counts | 5,6, 8, 10, 14, 16, 20, 21, 25, 30,32, 48, 56, 60 and 64 |
| Standard double row counts | 40,44, 56, 64 and 72 |
| Plating options | Au (Gold), Sn Pb (Tin Lead) |
The standard number of contacts includes 5, 6, 8, 10, 14, 16, 20, 21, 25, 30, 32, 48, 56, 60 and 64.
The standard number of contacts includes 40, 44, 56, 64 and 72.
Replace the 'xx' in the model code with the number of poles; for example, 8 pins per row becomes 460-10-2 16-00-001.
