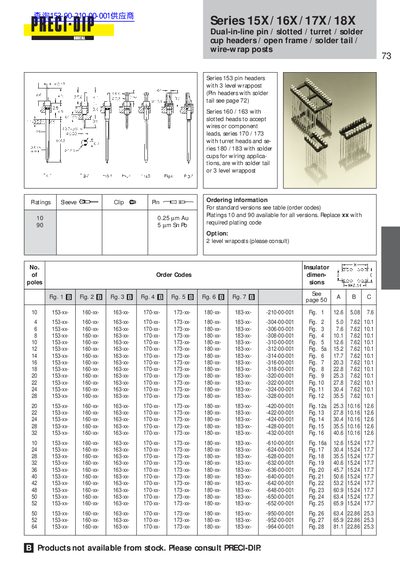

This document introduces the 73 series dual-in-line pin/slot/turret/solder cup headers, which are suitable for different wiring applications. It includes the 153 pin headers with 3 level wrap posts. It also introduces the 160/163 series with slotted heads for accepting wires or component leads; the 170/173 series with turret heads; and the 180/183 series with solder cups for wiring applications. The connectors are available with solder tail or 3 level wrap posts. The document provides different connector sizes and ordering information.
The 153 Series pin headers from PRECI‑DIP cover a range of package types, including dual‑in‑line, slotted, turret, solder‑cup, open frame, solder‑tail, and wire‑wrap posts. The series is offered in the 15X, 16X, 17X, and 18X size families.
Ordering information is provided through a table of order codes (e.g., 153‑xx‑) and includes available plating options. Dimensions for each configuration are shown in the figures, allowing users to select the appropriate part for their application.
| Gold plating thickness | 0.25 mm |
|---|---|
| Tin‑lead plating thickness | 5 mm |
| Available package types | dual‑in‑line, slotted, turret, solder‑cup, open frame, solder‑tail, wire‑wrap |
The series offers 0.25 mm gold plating (code 10) and 5 mm tin‑lead plating (code 90).
Order codes are listed in the table, using the format 153‑xx‑ followed by the specific variant number.
