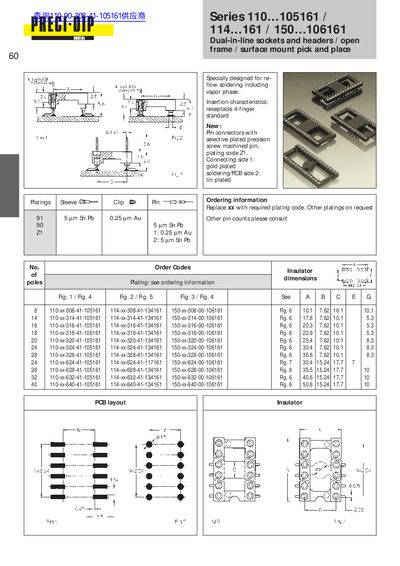

60 series 110…105161 / 114…161 / 150…106161 dual-in-line sockets and headers / open frame / surface mount pick and place specially designed for re- flow soldering including vapor phase. Insertion characteristics: receptacle 4-finger standard. New: pin connectors with selective plated precision screw machined pin, plating code Z1. Connecting side 1: gold plated soldering/PCB side 2: tin plated. Other platings on request. Other pin counts please consult
The PRECI-DIP Series 110, 114 and 150 family offers dual‑in‑line sockets and headers designed for open‑frame and surface‑mount pick‑and‑place applications. The handbook lists insertion characteristics, plating options, and dimensional data for each part number.
Key information includes gold plating on side 1 and tin plating on side 2, customizable plating codes, and detailed ordering codes that combine series numbers with dimensions. Figures illustrate the connector geometry and PCB layout guidelines.
| Receptacle type | 4‑finger standard |
|---|---|
| Side 1 plating | Gold |
| Side 2 plating | Tin |
| Pin count | 4 |
Replace xx with the required plating code; ordering codes combine the series number with dimensions such as 110‑xx‑308‑41‑105161.
