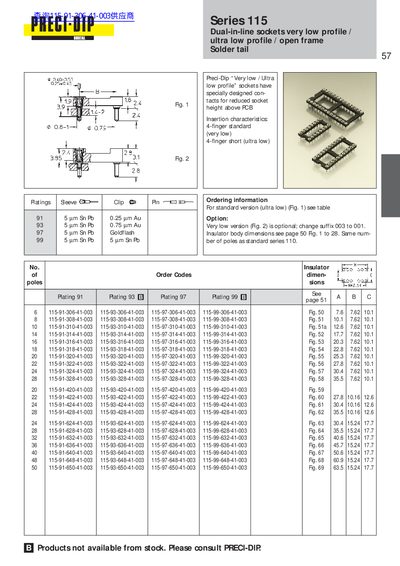

Series 115 Dual-in-line sockets very low profile / ultra low profile / open frame Solder tail Preci-Dip “Very low / Ultra low profile” sockets have specially designed con- tacts for reduced socket height above PCB
This document provides technical specifications and ordering information for the Preci-Dip Series 115 Dual-in-line sockets. These components are available in two primary configurations: a standard version described as 'very low' profile and an optional 'ultra low' profile variant, both designed to reduce socket height above the PCB.
| Contact Configuration | 4-finger standard (very low) or 4-finger short (ultra low) |
|---|---|
| Contact Type | Solder tail |
The document lists a 4-finger standard option and a 4-finger short option.
You must change the suffix from 003 to 001 in the order code.
