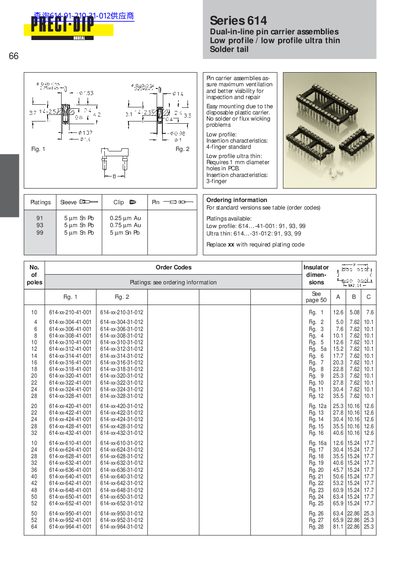

This document describes the features of the 66 Series 614 dual-in-line pin carrier assemblies, including low profile and low profile ultra-thin solder tail pin carrier assemblies. They provide maximum ventilation and better visibility for inspection and repair. The disposable plastic carrier allows for easy mounting without solder or flux wicking problems.
The 614 Series from PRECI‑DIP provides dual‑in‑line pin carrier assemblies in low‑profile and ultra‑thin formats. The low‑profile version uses a 4‑finger standard insertion, while the ultra‑thin version uses a 3‑finger insertion and requires 1 mm PCB holes.
The assemblies are supplied with various plating options (0.25 µm Sn+Pb, 0.75 µm Sn+Pb, 5 µm Au) and are identified by specific order codes for easy selection and procurement.
| Required PCB hole diameter (ultra thin) | 1 mm |
|---|---|
| Insertion type (low profile) | 4‑finger standard |
| Insertion type (ultra thin) | 3‑finger |
It requires 1 mm diameter holes in the PCB.
