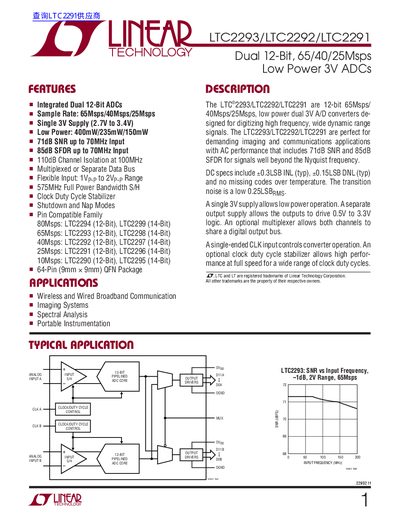

LINEAR LTC2293/LTC2292/LTC2291 Dual 12-Bit 65/40/25Msps Low Power 3V ADCs handbook

This datasheet provides detailed information about LTC2293/LTC2292/LTC2291, including features, applications, typical applications, specifications, and packages.

Brand: Linear Technology
Category: Data Converters
Document type: Datasheet
Language: English
Pages: 28
File format: PDF
File size: 1010 KB
Published: 05 June, 2012
Updated: 30 September, 2023
Model: 25MSPS
MD5 checksum: EE816839DBA105FFADA324044319722A
PDF: LINEAR LTC2293/LTC2292/LTC2291 Dual 12-Bit 65/40/25Msps Low Power 3V ADCs handbook PDF

About this manual

The LTC2293/LTC2292/LTC2291 are integrated dual 12-bit ADCs designed for digitizing high frequency, wide dynamic range signals. They operate on a single 3V supply (2.7V to 3.4V) and feature sample rates of 65Msps, 40Msps, or 25Msps respectively. Key performance metrics include up to 71dB SNR and 85dB SFDR at 70MHz input frequencies.

What's inside

Features
Typical Application
Absolute Maximum Ratings
Converter Characteristics
Analog Input Specifications
Dynamic Accuracy
Internal Reference Characteristics
Digital Inputs and Outputs
Power Requirements
Timing Characteristics

Specifications

Supply Voltage Range	2.7V to 3.4V

Frequently asked questions

What is the operating temperature range for the LTC2291C?

The operating temperature range for the LTC2291C is 0°C to 70°C.
