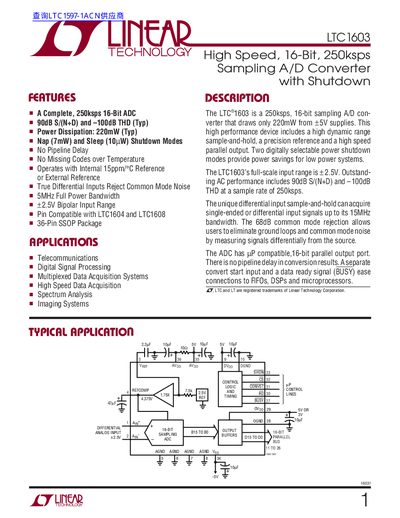

The LTC ®1603 is a 250ksps, 16-bit sampling A/D con- verter that draws only 220mW from ±5V supplies. This high performance device includes a high dynamic range sample-and-hold, a precision reference and a high speed parallel output. Two digitally selectable power shutdown modes provide power savings for low power systems.
The LTC1603 is a 250ksps, 16-bit sampling analog-to-digital (A/D) converter designed for telecommunications and digital signal processing applications. It features a full-scale input range of +2.5V bipolar operation and includes a precision internal reference with 15ppm/°C temperature coefficient.
The device offers high dynamic range performance, including 90dB S/(N+D) and -100dB THD at the maximum sample rate. It incorporates two power shutdown modes (Nap and Sleep) to reduce power dissipation in low-power systems and is available in a 36-lead SSOP package.
| Full Power Bandwidth | 5 MHz |
|---|
The typical power dissipation is 220mW when operating with standard supply voltages.
No, there is no pipeline delay in conversion results for this device.
The device includes Nap (7mW) and Sleep (10uA) shutdown modes for power savings.
