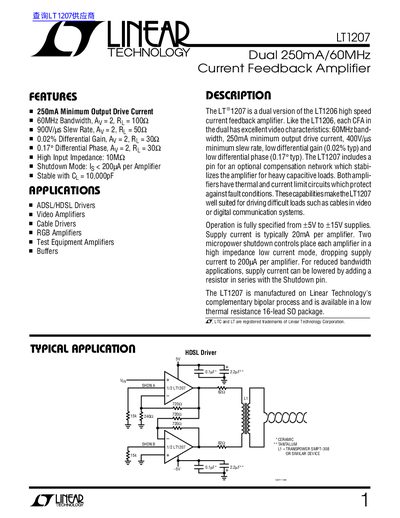

The LT1207 dual 250mA/60MHz current feedback amplifier features a 250mA minimum output drive current, 60MHz bandwidth, 900V/µs slew rate, 0.02% differential gain, and 0.17° differential phase.
The LT1207 is a dual version of the high-speed LT1206 current feedback amplifier. It features excellent video characteristics including 60MHz bandwidth, 250mA minimum output drive current, and a slew rate of up to 900V/us. The device includes an optional compensation network for stability with heavy capacitive loads.
| Output Drive Current (Min) | 250mA |
|---|---|
| Bandwidth | 60MHz |
| Slew Rate (Max) | 900V/us |
| Supply Voltage Range | +5V to +15V |
| Package Type | 16-lead SO |
The amplifier provides a minimum output drive current of 250mA.
The typical supply current is 20mA per amplifier.
