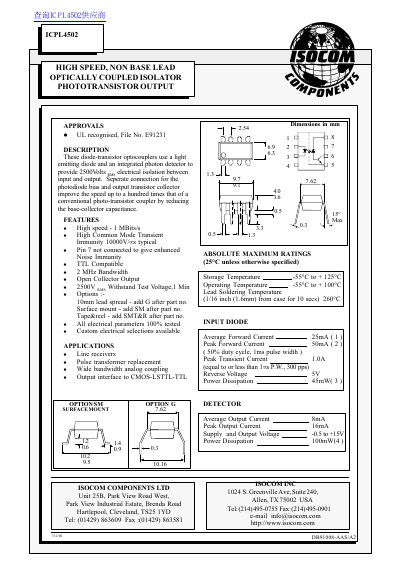

ISOCOM ICPL4502 is a high-speed optocoupler that uses an LED and an integrated photodetector to provide 2500V RMS electrical isolation.
The ISOCOM ICPL4502 is a high-speed, non-base lead optically coupled isolator with phototransistor output. It utilizes a light emitting diode and an integrated photon detector to provide electrical isolation between input and output circuits.
Key features include a propagation delay of up to 1 MBits/s, a bandwidth of 2 MHz, and high common mode transient immunity of 10,000 V/µs. The device supports TTL compatibility and offers options for surface mount (SM) and tape & reel packaging.
| Isolation Voltage | 2500V RMS |
|---|---|
| Data Rate | 1 MBits/s |
| Bandwidth | 2 MHz |
| Common Mode Transient Immunity | 10000V/µs |
| Operating Temperature | -55°C to +100°C |
The device can operate at temperatures up to +100°C.
It provides 2500 Volts RMS of electrical isolation between input and output.
The unit has a stated bandwidth of 2 MHz.
