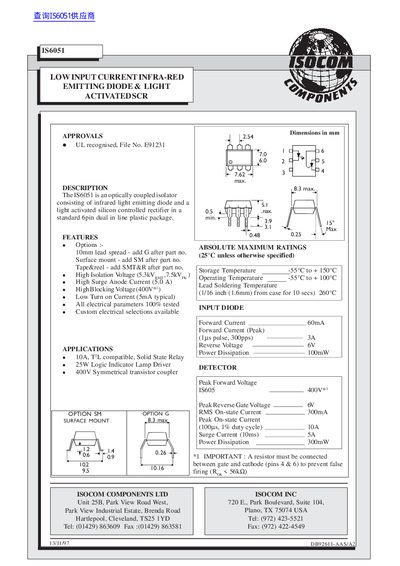

The IS6051 is an optically coupled isolator consisting of infrared light emitting diode and a light activated silicon controlled rectifier in a standard 6pin dual in line plastic package.
The IS6051 is an optically coupled isolator that combines an infrared light‑emitting diode with a light‑activated silicon controlled rectifier in a 6‑pin DIP package. It is designed for applications such as solid‑state relays, logic indicator lamp drivers, and high‑voltage transistor couplers.
Key features include low turn‑on current (5 mA typical), high isolation voltage (5.3 kV), high surge anode current (5 A), and a range of package options (lead‑spread, surface‑mount, tape‑and‑reel). The device is UL recognised (File No. E91231) and operates over a wide temperature range.
| Input Forward Voltage (typ) | 15 V |
|---|---|
| Reverse Voltage (min) | 3 V |
| Output Peak Off‑state Voltage (max) | 400 V |
| RMS On‑state Current | 300 mA |
| Peak On‑state Current (100 s, 1 % duty) | 10 A |
| Surge Current (10 ms) | 5 A |
| Power Dissipation (Input Diode) | 100 mW |
| Power Dissipation (Detector) | 300 mW |
| Storage Temperature Range | -55 °C to +150 °C |
| Operating Temperature Range | -55 °C to +100 °C |
The typical turn‑on current is 5 mA.
Options include 10 mm lead spread (add G), surface‑mount (add SM), and tape‑and‑reel (add SMT&R).
The maximum blocking voltage is 400 V.
