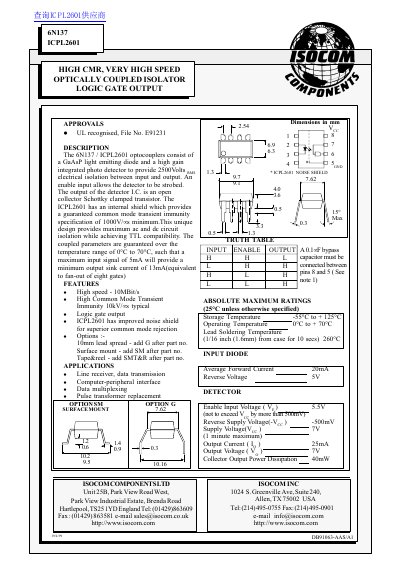

6N137/ICPL2601 optocouplers consist of a GaAsP light emitting diode and a high gain integrated photo detector to provide 2500Volts RMS electrical isolation between input and output.
The ICPL2601 optocoupler from ISOCOM combines a GaAsP LED with a high‑gain integrated photodetector to provide 2500 V RMS electrical isolation and a logic‑gate output. It features a high‑speed data rate of up to 10 MBit/s, an enable input for strobing, and a noise‑shielded design for superior common‑mode rejection.
Electrical characteristics include a supply voltage of 5.5 V, high‑level output current of about 22 µA, and a typical isolation voltage of 2500 V RMS. The device is suited for line‑receiver, data‑transmission, computer‑peripheral interface, data‑multiplexing, and pulse‑transformer replacement applications. This manual is written in Chinese.
| Isolation Voltage | 2500 V RMS |
|---|---|
| Data Rate | 10 MBit/s |
| Supply Voltage (VCC) | 5.5 V |
| Enable Voltage High (VEH) | 2.0 V |
| High Level Output Current (IOH) | 22.5 µA |
The ICPL2601 provides an isolation voltage of 2500 V RMS.
It is rated for a high‑speed data rate of 10 MBit/s.
The device operates from a 5.5 V supply.
The high‑level enable voltage is 2.0 V and the low‑level is 0.8 V.
