PC-Tron® is a subminiature fuse from Bussmann®. It has a 0.2-inch lead spacing, which makes it easy to design. Standard wave soldering techniques will not affect the electrical performance of this unique fuse. PC-Tron® is available in a wide variety of options offering flexibility to the design engineer.

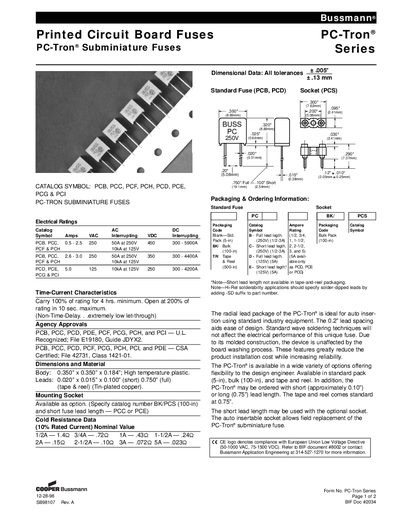

This document provides technical data for the Bussmann PC-Tron Series of Printed Circuit Board Fuses. It covers dimensional specifications, electrical ratings including AC/DC interrupting capacities, and time-current characteristics for various amperage ratings from 1/2A to 5A.
The datasheet details packaging options such as standard packs, bulk, and tape-and-reel configurations with varying lead lengths. It also includes information on agency approvals (UL, CSA), cold resistance data, and specific performance notes regarding auto-insertion and soldering compatibility.
| AC Interrupting Rating (1/2A to 3A) | 50A at 250V |
|---|---|
| DC Interrupting Rating (1/2A to 3A) | 450V at 300 - 5900A |
| AC Interrupting Rating (1/2A to 5A) | 10kA at 125V |
| DC Interrupting Rating (1/2A to 5A) | 350V at 300 - 4400A |
| Body Dimensions | 0.350" x 0.350" x 0.184" |
| Lead Spacing | 0.2" |
The available catalog symbols are PCB, PCC, PCF, PCH, PCD, PCE, PCG, and PCI.
Yes, the radial lead package is ideal for auto insertion using standard industry equipment.
It is UL Recognized (File E19180) and CSA Certified (File 42731, Class 1421-01).
