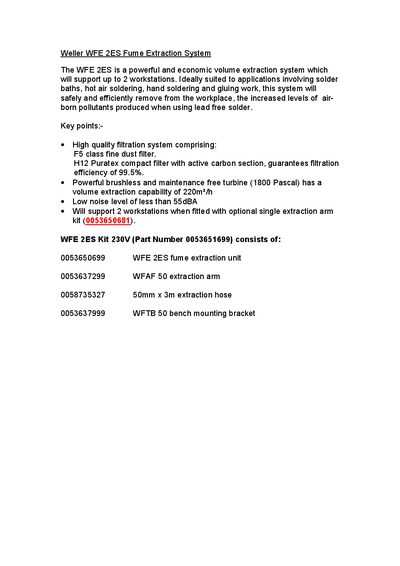

The WFE 2ES is a powerful and economic volume extraction system which will support up to 2 workstations. Ideally suited to applications involving solder baths, hot air soldering, hand soldering and gluing work, this system will safely and efficiently remove from the workplace, the increased levels of air- born pollutants produced when using lead free solder. Key features include a high quality filtration system with a filtration efficiency of 99.5%, a powerful brushless and maintenance free turbine, low noise level of less than 55dBA, and the ability to support 2 workstations with the optional single extraction arm kit (0053650681).
The WFE 2ES is a powerful and economic volume extraction system designed for solder baths, hot‑air soldering, hand soldering and gluing work. It safely removes airborne pollutants generated by lead‑free soldering processes.
Key points include an F5 fine dust filter, an H12 Puratex compact filter with an active carbon section (99.5% efficiency), a brushless turbine delivering 1800 Pa pressure and 220 m³/h extraction flow, and a low noise level under 55 dBA. The system supports two workstations when equipped with the optional single extraction arm kit and is supplied as a complete kit with unit, arm, hose and mounting bracket.
| Filtration efficiency | 99.5% |
|---|---|
| Turbine pressure | 1800 Pa |
| Extraction flow rate | 220 m³/h |
| Noise level | <55 dBA |
| Supported workstations | 2 |
| Dust filter type | F5 class fine dust filter |
| Carbon filter type | H12 Puratex compact filter with active carbon |
It can support up to two workstations when fitted with the optional single extraction arm kit.
The system operates at a low noise level of less than 55 dBA.
The brushless turbine provides a volume extraction capability of 220 m³/h.
