This document is a user manual of hot air gun WHA 3000P, introducing the features and characteristics of the product.

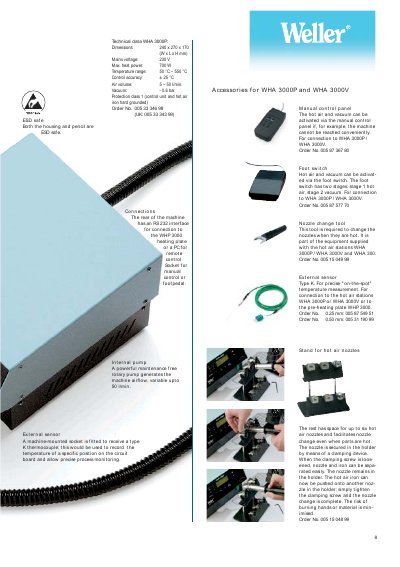

The Weller WHA 3000 series hot‑air stations provide digitally controlled airflow and temperature for soldering and desoldering SMD components. This guide details the accessories available for the WHA 3000P (built‑in pump) and WHA 3000V (compressed‑air or inert‑gas supply), including nozzle change tools, stands, circuit‑board holders and heating plates.
Technical specifications such as dimensions, power, temperature range, airflow and vacuum are provided, together with connection options (RS‑232, manual panel, foot switch) and safety features like ESD‑safe housing and ion‑trap air delivery. The document also describes optional accessories for board handling and pre‑heating.
| Dimensions (WHA 3000P) | 240 x 270 x 170 mm (W x L x H) |
|---|---|
| Mains voltage (WHA 3000P) | 230 V |
| Max heat power (WHA 3000P) | 700 W |
| Temperature range (WHA 3000P) | 50 °C – 550 °C |
| Control accuracy (WHA 3000P) | ± 25 °C |
| Air volume (WHA 3000P) | 5 – 50 l/min |
| Vacuum (WHA 3000P) | -0.6 bar |
| Protection class (WHA 3000P) | Class 1 (hard grounded) |
| Dimensions (WHA 3000V) | 240 x 270 x 100 mm (W x L x H) |
| Air volume (WHA 3000V) | 5 – 50 l/min |
| Vacuum (WHA 3000V) | -0.6 bar |
The WHA 3000P can generate an air volume of 5 to 50 l/min.
A RS‑232 interface on the rear of the machine allows connection to a PC or heating plate for remote control.
Yes, both the housing and the pencil are ESD safe.
