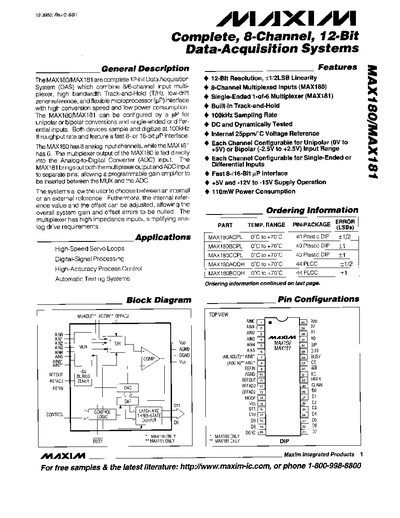

The document describes the MAX180/MAX181, complete 12-bit Data Acquisition Systems that combine an input multiplexer, high bandwidth Track-and-Hold circuit, low-drift zener reference, and a flexible microprocessor interface. These systems support sampling rates up to 100kHz and allow configuration for unipolar or bipolar conversions with single-ended or differential inputs.
| Resolution | 12 Bits |
|---|---|
| Sampling Rate | 100kHz |
| Channels (MAX180) | 8-Channel Multiplexed Inputs |
| Channels (MAX181) | Single-Ended 1-of-6 Multiplexer |
| Power Consumption | 110mW |
The MAX180/MAX181 can sample and digitize at a throughput rate of 100kHz.
The system features a power consumption of 110mW.
The MAX18_C grade operates from 0°C to +70°C, while the MAX18_F grade operates from -40°C to +85°C.
The absolute maximum rating for VDD to DGND is 0.3V above or below the nominal, up to a continuous limit of +5V.
