This document introduces the features and characteristics of the TLC08x series, including wide bandwidth, high output drive capability, high slew rate, wide power range, low power shutdown mode, low input noise voltage, input offset voltage, etc.

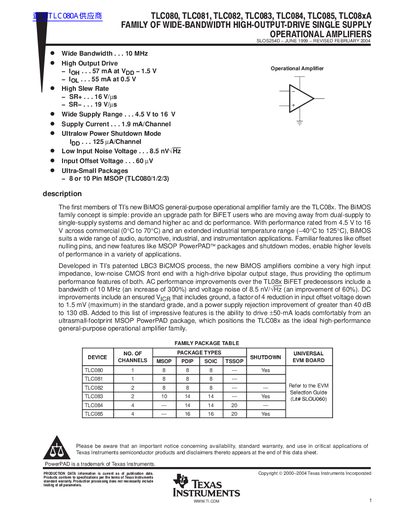

The document describes the TLC08x family of operational amplifiers developed in Texas Instruments' patented LBC3 BiCMOS process. These devices combine a high-input-impedance low-noise CMOS front end with a high-drive bipolar output stage, offering performance improvements over previous BiFET predecessors.
| Bandwidth | 10 MHz |
|---|---|
| High Output Drive (Ioh) | 57 mA at Vpp=1.5V |
| Low Level Output Current (Iol) | 55 mA at 0.5 V |
| Slew Rate Positive (SR+) | 16 V/s |
| Supply Range | 4.5V to 16 V |
| Input Noise Voltage | 8.5 nV/√Hz |
The wide supply range is from 4.5V to 16 V.
The AC performance includes a bandwidth of 10 MHz.
The ultralow power shutdown mode draws 125 µA/Channel.
