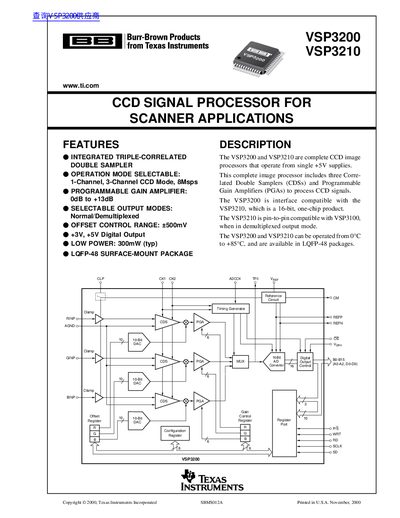

The VSP3200 and VSP3210 are complete CCD image processors that operate from single +5V supplies. This complete image processor includes three Correlated Double Samplers (CDSs) and Programmable Gain Amplifiers (PGAs) to process CCD signals. The VSP3200 is interface compatible with the VSP3210, which is a 16-bit, one-chip product. The VSP3210 is pin-to-pin compatible with VSP3100, when in demultiplexed output mode. The VSP3200 and VSP3210 can be operated from 0°C to +85°C, and are available in LQFP-48 packages.
The VSP3200 and VSP3210 are complete CCD image processors designed to operate from single +5V supplies. These devices integrate three Correlated Double Samplers (CDSs) and Programmable Gain Amplifiers (PGAs) specifically for processing signals in scanner applications.
Both models support selectable operation modes, including 1-Channel and 3-Channel CCD configurations with a maximum conversion rate of 8 Msps. The VSP3210 is a 16-bit one-chip product that offers pin-to-pin compatibility with the VSP3100 when operating in demultiplexed output mode.
| Resolution | 16 Bits |
|---|---|
| Operation Temperature Range | 0°C to +85°C |
The device supports a maximum conversion rate of 8 MHz in both 1-Channel and 3-Channel CCD modes.
The VSP3200 dissipates a typical of 300 mW when operating in 1-Ch CCD mode with no load.
The offset control provides a voltage range of +500 mV using a 10-Bit Control DAC.
