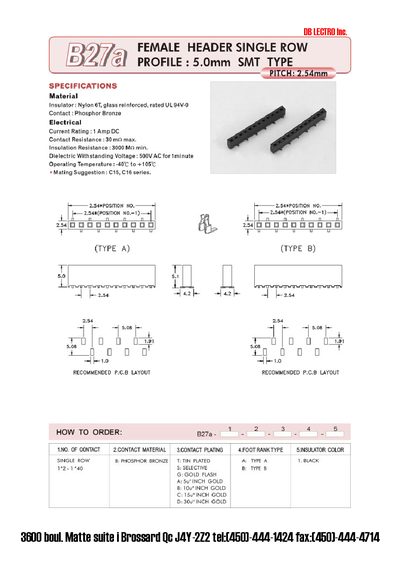

This document provides technical specifications for the DB LECTRO B27A, a female header single row connector with a 5.0mm SMT type profile. The component features a nylon 6T glass-reinforced insulator rated UL 94V-0 and phosphor bronze contacts.
| Profile Type | 5.0mm SMT TYPE |
|---|---|
| Insulator Material | Nylon 6T, glass reinforced |
| Contact Material | Phosphor Bronze |
| Current Rating | 1 Amp DC |
| Operating Temperature | -40°C to +105°C |
The document suggests mating with C15 or C16 series connectors.
The contact can handle a maximum of 1 Amp DC.
The insulation resistance must be at least 3000 M2.
