KL series is a chip type capacitor from Nichicon. The rated working voltage is 6.3~100V, the working temperature range is -40~+105℃, and it has a load life of 5000 hours.

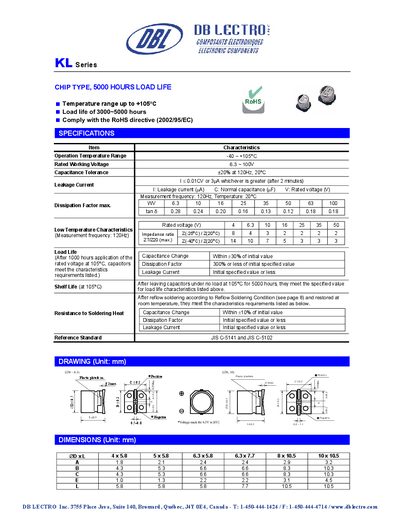

This handbook describes the KL Series aluminum electrolytic capacitors, covering their electrical characteristics such as operating temperature range, rated voltage, capacitance tolerance and load life. It also includes dimensional data, permissible ripple current, part‑number coding and RoHS compliance information.
Additional sections give practical design advice, mounting instructions, reflow soldering conditions and reliability equations for estimating capacitor life under temperature and ripple‑current stress. The document is intended for engineers selecting capacitors for electronic circuits.
| Operation Temperature Range | -40 °C ~ +105 °C |
|---|---|
| Rated Working Voltage | 6.3 V ~ 100 V |
| Capacitance Tolerance | +20 % at 120 Hz, 20 °C |
| Load Life (KL Series) | 5000 hours |
| RoHS Compliance | Yes |
