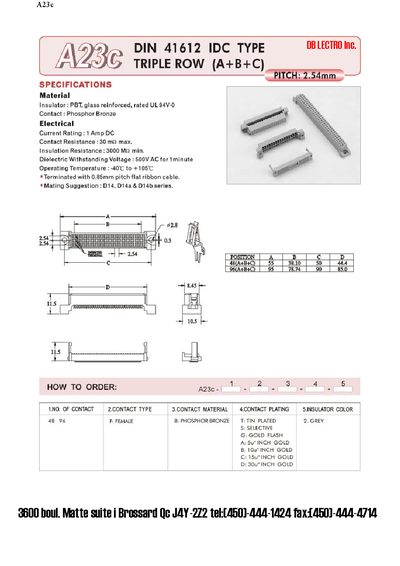

The A23c is a DIN 41612 IDC type connector with a triple‑row (A+B+C) configuration. It features a 2.54 mm pitch and is designed for termination with a 0.85 mm pitch flat ribbon cable. The connector is suitable for mating with the 014, Dida, and D14b series.
Key specifications include a phosphor‑bronze contact material, PBT glass‑reinforced insulator, 1 A DC current rating, 30 mΩ maximum contact resistance, and a dielectric withstand voltage of 500 V AC for 1 minute. It operates from –40 °C to +105 °C and offers a minimum insulation resistance of 3000 MΩ.
| Pitch | 2.54 mm |
|---|---|
| Insulator Material | PBT, glass reinforced |
| Contact Material | Phosphor Bronze |
| Current Rating | 1 A DC |
| Contact Resistance | 30 mΩ max |
| Insulation Resistance | ≥ 3000 MΩ |
| Dielectric Withstanding Voltage | 500 V AC for 1 min |
| Operating Temperature | -40 °C to +105 °C |
| Termination | 0.85 mm pitch flat ribbon cable |
| Mating Suggestion | 014, Dida & D14b series |
The connector has a 2.54 mm pitch.
It is rated for 1 A DC.
The insulation resistance is at least 3000 MΩ.
Terminate it with a 0.85 mm pitch flat ribbon cable.
