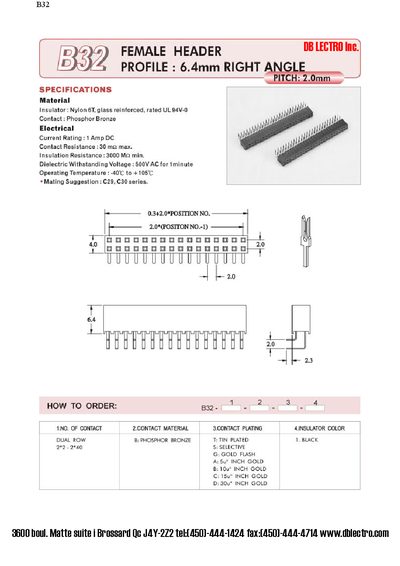

The B32 is a female header profile from DB LECTRO designed for reliable electrical connections. It features a nylon 6T glass‑reinforced insulator and phosphor bronze contacts.
The datasheet lists key specifications such as a 1 A DC current rating, 30 mΩ contact resistance, 3000 MΩ insulation resistance, 500 V AC dielectric withstand for 1 minute, and an operating temperature range of –40 °C to +105 °C. Ordering options and contact plating choices are also provided.
| Insulator material | Nylon 6T, glass reinforced, UL 94V-0 |
|---|---|
| Contact material | Phosphor Bronze |
| Current rating | 1 Amp DC |
| Contact resistance | 30 mΩ max |
| Insulation resistance | 3000 MΩ min |
| Dielectric Withstanding Voltage | 500 V AC for 1 minute |
| Operating temperature | -40 °C to +105 °C |
The B32 is rated for 1 Amp DC current.
It can withstand 500 V AC for 1 minute.
The insulator is made of nylon 6T, glass reinforced, rated UL 94V-0.
