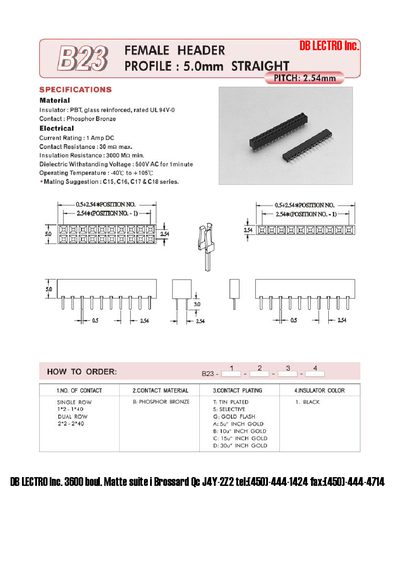

The DB LECTRO B23 is a female header connector with a 5.0 mm straight profile and a 2.54 mm pitch. It is designed for use with C15‑C18 series mating connectors.
Key specifications include a PBT, glass‑reinforced insulator (UL 94V‑0), phosphor bronze contacts, 1 A DC current rating, 30 mΩ max contact resistance, 3000 MΩ min insulation resistance, and a dielectric withstanding voltage of 500 V AC for 1 minute. The operating temperature range is –40 °C to +105 °C.
| Pitch | 2.54 mm |
|---|---|
| Insulator Material | PBT, glass reinforced, UL 94V‑0 |
| Contact Material | Phosphor Bronze |
| Current Rating | 1 Amp DC |
| Contact Resistance | 30 mΩ max |
| Insulation Resistance | 3000 MΩ min |
| Dielectric Withstanding Voltage | 500 V AC for 1 minute |
| Operating Temperature | -40 °C to +105 °C |
| Mating Suggestion | C15, C16, C17 & C18 series |
The connector has a 2.54 mm pitch.
It is rated for 1 Amp DC.
Provide the number of contacts, contact material, plating, and insulator color as shown in the ordering section.
