DB LECTRO Inc. is an electronic component manufacturer based in Brossard, Quebec, Canada.

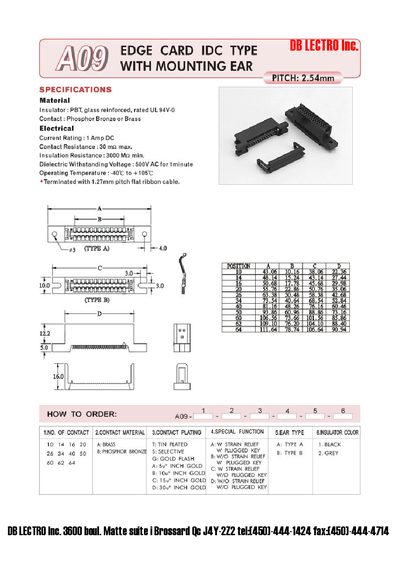

This document is a technical datasheet for the DB LECTRO A09 Edge Card IDC Type with Mounting Ear. The product features a 2.54mm pitch and is terminated with a 1.27mm pitch flat ribbon cable.
The connector utilizes a PBT glass-reinforced insulator rated UL 94-0 and contacts made of phosphor bronze or brass. It supports an operating temperature range from -40°C to +105°C.
| Pitch | 2.54mm |
|---|---|
| Insulator Material | PBT, glass reinforced |
| Contact Resistance | 30 mΩ max |
| Operating Temperature | -40°C to +105°C |
The pitch is 2.54mm.
The current rating is 1 Amp DC.
It operates from -40°C to +105°C.
