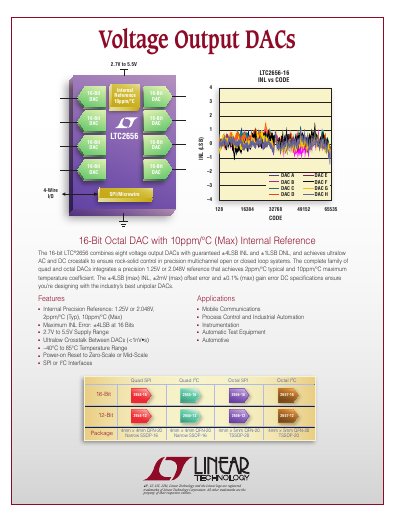

The LTC2656 is a 16-bit, eight-channel voltage output DAC from Linear Technology. It features guaranteed ±4LSB INL and ±1LSB DNL, and achieves ultralow AC and DC crosstalk to ensure rock-solid control in precision multichannel open or closed loop systems. The complete family of quad and octal DACs integrates a precision 1.25V or 2.048V reference that achieves 2ppm/°C typical and 10ppm/°C maximum temperature coefficient. The ±4LSB (max) INL, ±2mV (max) offset error and ±0.1% (max) gain error DC specifications ensure you’re designing with the industry’s best unipolar DACs.
The LTC2656 is a 16-bit octal DAC that combines eight voltage output channels. It features guaranteed ±4LSB INL and ±1LSB DNL, along with ultralow AC and DC crosstalk to ensure precise control in multichannel systems.
| Resolution | 16-bit |
|---|---|
| Channels | Octal (8) |
| INL Error | ±4LSB (max) |
| Supply Range | 2.7V to 5.5V |
| Temperature Range | -40°C to 85°C |
The internal precision reference achieves a maximum temperature coefficient of 10ppm/°C.
The device operates with a single supply voltage ranging from 2.7V to 5.5V.
The device has a guaranteed maximum INL error of ±4LSB at 16 bits.
