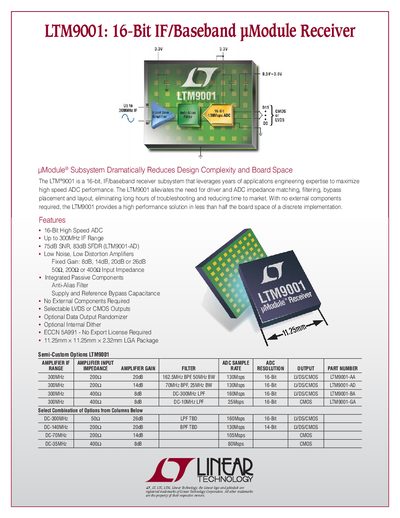

The LTM®9001 is a 16-bit, IF/baseband receiver subsystem that leverages years of applications engineering expertise to maximize high speed ADC performance. The LTM9001 alleviates the need for driver and ADC impedance matching, filtering, bypass placement and layout, eliminating long hours of troubleshooting and reducing time to market. With no external components required, the LTM9001 provides a high performance solution in less than half the board space of a discrete implementation.
The document describes the LTM9001, a 16-bit IF/baseband receiver subsystem designed to reduce design complexity and board space. It leverages Linear Technology's expertise in high speed ADC performance by integrating amplifiers, filters, and bypass capacitance into an 11.25mm x 11.25mm LGA package with no external components required.
| Resolution | 16-Bit |
|---|---|
| IF Range | Up to 300MHz |
| SNR | 75dB |
| SFDR | 83dB |
| Fixed Gain Options | 8dB, 14dB, 20dB or 26dB |
| Input Impedance Options | 50Q, 2000 or 400Q |
| Package Dimensions | 11.25mm x 11.25mm x 2.32mm |
| Output Types | LVDS or CMOS |
No, it requires no external components.
The maximum IF range is up to 300MHz.
