The LTC2393-16 is a 16-bit low-power analog-to-digital converter with an internal reference and no-latency operation, enabling high accuracy measurements.

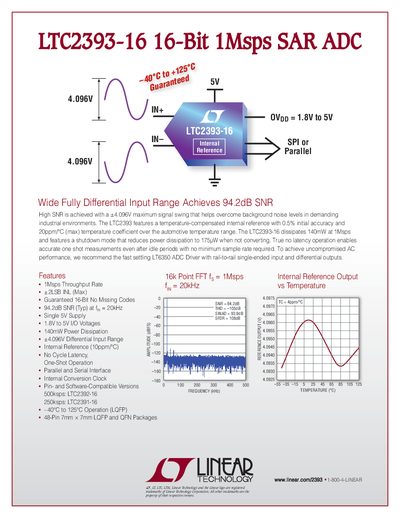

The LTC2393-16 is a 16-bit, 1Msps Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). It features a wide fully differential input range of +4.096V, achieving a typical Signal-to-Noise Ratio (SNR) of 94.2dB at 20kHz. The device includes a temperature-compensated internal reference with 0.5% initial accuracy and operates from a single 5V supply.
| Resolution | 16-Bit |
|---|---|
| Sampling Rate | 1Msps |
| SNR (Typical) | 94.2dB at fy = 20kHz |
| INL (Max) | +2LSB |
| Power Dissipation | 140mW at 1Msps |
| Shutdown Power | 175uW |
Yes, it features a temperature-compensated internal reference with 0.5% initial accuracy.
No, it features true no latency operation enabling accurate one-shot measurements.
