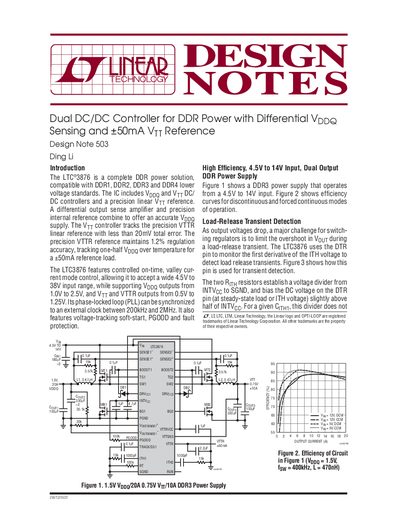

This document introduces the LTC3876, a complete DDR power solution that is compatible with DDR1, DDR2, DDR3 and DDR4 lower voltage standards. The IC includes VDDQ and VTT DC/DC controllers and a precision linear VTT reference.
The LTC3876 is an integrated circuit designed as a complete power supply solution for DDR memory systems. It includes two DC/DC controllers (for VPPQ and VTT) and a precision linear VTT reference, supporting input voltages from 4.5V to 38V.
| Compatible Standards | DDR1, DDR2, DDR3 and DDR4 lower voltage standards |
|---|---|
| Input Voltage Range | 4.5V to 38V |
| Switching Frequency Range | 200kHz and 2MHz |
| VPPQ Output Range | 1.0V to 2.5V |
| VTTR and VDDQ Output Range | 0.5V to 1.25V |
| VTTR Regulation Accuracy | 1.2% |
The device accepts a wide input range from 4.5V to 38V.
It is compatible with DDR1, DDR2, DDR3 and DDR4 lower voltage standards.
