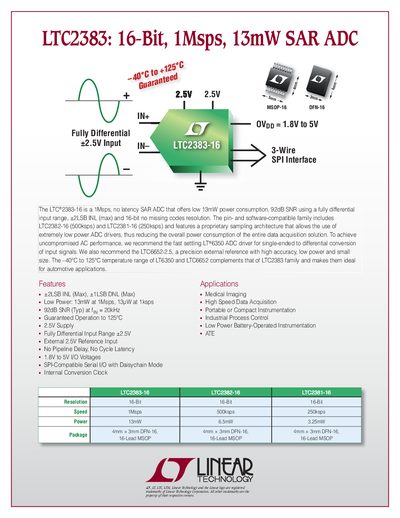

The LTC2383-16 is a 1Msps, no latency SAR ADC that offers low 13mW power consumption, 92dB SNR using a fully differential input range, ±2LSB INL (max) and 16-bit no missing codes resolution. The pin- and software-compatible family includes LTC2382-16 (500ksps) and LTC2381-16 (250ksps) and features a proprietary sampling architecture that allows the use of extremely low power ADC drivers, thus reducing the overall power consumption of the entire data acquisition solution. To achieve uncompromised AC performance, we recommend the fast settling LT®6350 ADC driver for single-ended to differential conversion of input signals. We also recommend the LTC6652-2.5, a precision external reference with high accuracy, low power and small size. The –40°C to 125°C temperature range of LT6350 and LTC6652 complements that of LTC2383 family and makes them ideal for automotive applications.
The document describes the LTC2383-16, a 16-bit, 1Msps Successive Approximation Register (SAR) Analog-to-Digital Converter. It features a proprietary sampling architecture that enables extremely low power consumption of 13mW at full speed while maintaining high AC performance with 92dB SNR and +2LSB Integral Non-Linearity (INL). The device operates over a wide temperature range from -40°C to 125°C.
| Resolution | 16-Bit |
|---|---|
| Sampling Speed | 1Msps |
| Power Consumption | 13mW at 1Msps |
| Signal-to-Noise Ratio (SNR) | 92dB (Typ) at fS = 20kHz |
| Integral Non-Linearity (INL) | +2LSB (Max) |
| Input Type | Fully Differential |
| Supply Voltage | +2.5V |
The device consumes 13mW of power when running at a speed of 1Msps.
The device is guaranteed to operate up to a maximum temperature of 125°C.
The LTC6652 is offered in seven output voltage options including 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V and 5V.
