This document describes a MOSFET circuit with a small footprint and low resistance. It has a wide operating voltage range and features adjustable current limit, temperature monitoring, overtemperature protection, and overcurrent protection.

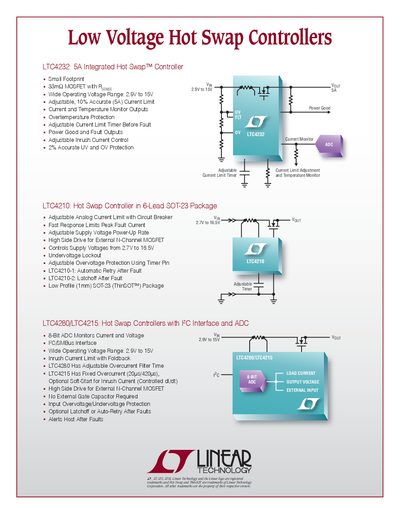

The document is a datasheet for the LTC4232, a low voltage hot swap controller designed to control supply voltages from 2.9V to 15V. It features a small footprint with a 33mQ MOSFET and includes adjustable current limit settings that are accurate within 10% at 5A.
| Operating Voltage Range | 2.9V to 15V |
|---|---|
| Current Limit Accuracy | 10% (at 5A) |
| MOSFET Resistance | 33mQ |
The LTC4232 is a 5A integrated hot swap controller.
The device supports a wide operating voltage range from 2.9V to 15V.
The controller provides an adjustable, 10% accurate current limit at 5A.
