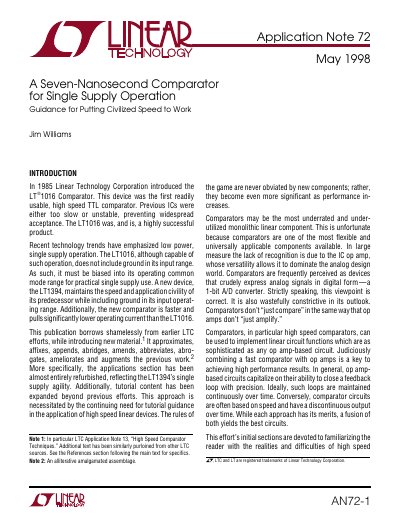

This is an application note about the LT1394 single supply comparator, which introduces the new device's features and characteristics, as well as how to use it in a single supply application.
The document introduces the LT1394 as an ultrahigh speed comparator featuring TTL-compatible complementary outputs and a 7ns response time. It is designed to operate on a single supply while including ground in its input operating range, addressing limitations of previous devices like the LT1016.
The typical response time is 7ns with a maximum of 9ns under a 5mV overdrive condition.
The maximum input offset voltage for the LT1394 is 2mV.
