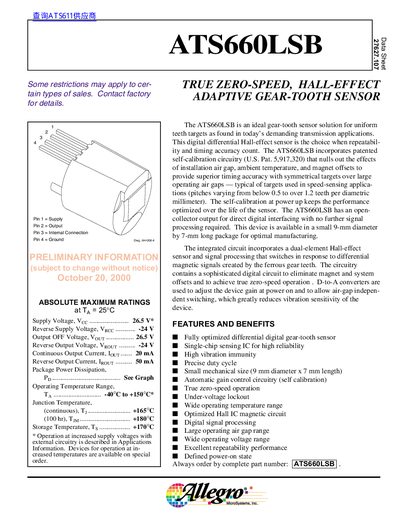

ATS660LSB is a digital differential Hall-effect sensor that is ideal for high-precision and high-repeatability products
The ATS660LSB is an ideal solution for uniform teeth targets found in demanding transmission applications. It functions as a digital differential Hall-effect sensor that incorporates patented self-calibration circuitry to null out effects of installation air gap, ambient temperature, and magnet offsets. This ensures superior timing accuracy with symmetrical targets over large operating air gaps.
| Supply Voltage (Operating) | 4.5 V to 24 V |
|---|---|
| Operating Temperature Range | -40°C to +150 °C |
| Package Dimensions | 9 mm diameter x 7 mm length |
| Output Type | Open-collector output |
| Air-Gap Range (Operational) | 0.5 mm to 2.5 mm |
| Maximum Speed | 20 kHz |
It serves as a true zero-speed, Hall-effect adaptive gear-tooth sensor for uniform teeth targets.
No, it has an open-collector output for direct digital interfacing with no further signal processing required.
