Matrix Multimedia EB19430 AVR Board User Manual

Matrix Multimedia Atmel AVR® Board EB19430 is a development board based on Atmel AVR® produced by Matrix Multimedia Limited.

Brand: Matrix
Category: microcontrollers
Document type: User Manual
Language: English
Pages: 14
File format: PDF
File size: 750 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: FFC8437589B1B658EA5B7D024F016708
PDF: Matrix Multimedia EB19430 AVR Board User Manual PDF

About this manual

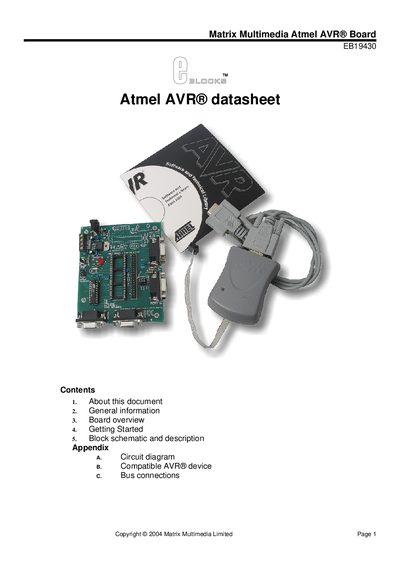

The document serves as a user guide for the Matrix Multimedia Atmel AVR Board (model EB19430). It details how to install the necessary software, specifically AVR Studio 4, and explains how to use the board as both a programmer and a development platform. The manual covers compatibility with various Atmel AVR devices and provides step-by-step instructions for programming specific chips like the AT90S1200.

What's inside

About this document
General information
Board overview
Getting Started
Installation instructions - Software
Programming the AT90S1200
Ensuring correct polarity for power supply
Block schematic and description

Specifications

Compatible Devices	Large selection of 20 and 40 pin Atmel AVR devices
Clock Operation	Xtal operation and internal RC operation

Frequently asked questions

What software is required to use the board?

The board uses Atmel's AVR Studio, which is a free downloadable program.

How do I verify the board is functional?

Program the AT90S1200 with the test routine 90S1200.hex and check that all LEDs illuminate.
