This flexible development board allows you to learn both how to program PICmicro microcontrollers as well as program a range of 8, 14, 18, 28, and 40 pin devices from the 12, 16 and 18 series PICmicro ranges. All programming software is included in the PPP utility which is supplied with the board. Makes it easier to teach and learn PICmicro programming. Designed for learning and teaching. 3 CD ROM based resources in assembly, C, and flow chart programming are available. Large range of add-ons and security options make this ideal for educational use. Makes it easier to develop PICmicro projects. Compatible with the E-blocks™ range of circuit boards. Supports low cost Flash-programmable PICmicro devices. Fully featured displays - 16 individual LEDs, quad 7-segment display and LCD display. On-board sensors. Compatible with more than 30 additional sensors. Fully protected expansion bus for project work.

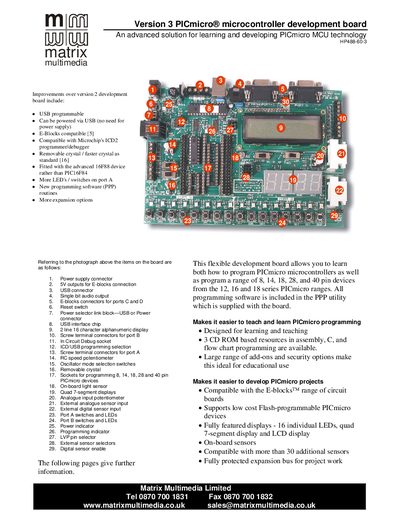

The Matrix Version 3 PICmicro development board is designed for learning and developing PICmicro microcontroller projects. It supports a wide range of PICmicro devices, provides USB power, removable crystal, on‑board sensors and extensive I/O options, and comes with the PPP programming utility and tutorial CD‑ROMs.
The manual details board features, add‑on E‑blocks, protection accessories, system requirements, and a full list of supported PICmicro devices, helping educators and hobbyists set up and program the board efficiently.
| Power supply | USB programmable, can be powered via USB or external supply |
|---|---|
| Microcontroller on board | Advanced PIC16F88 device |
