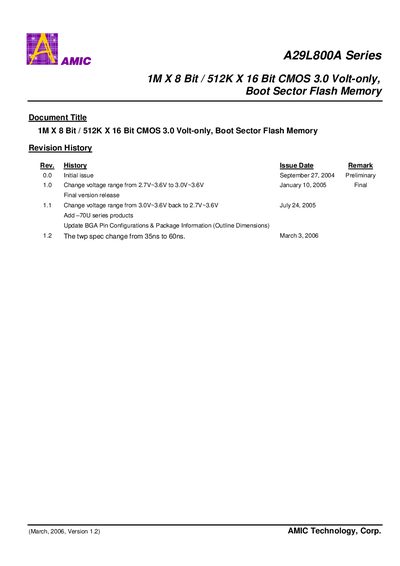

A29L800A Series 1M x 8Bit / 512K x 16Bit CMOS 3.0 Volt-only, Boot Sector Flash Memory (March, 2006, Version 1.2) AMIC Technology, Corp. This document provides details of the 1M x 8Bit / 512K x 16Bit CMOS 3.0 Volt-only, Boot Sector Flash Memory. The document includes the product's features and characteristics, access times, current, flexible sector architecture, sector protection and extended operating temperature range.
The A29L800A is an 8Mbit Flash memory organized as 1,048,576 bytes of 8 bits or 524,288 words of 16 bits. It operates on a single 3.0V power supply (2.7V to 3.6V) and does not require an additional VPP voltage for in-system programming or erasure.
The device features flexible sector architecture with options for 16Kbyte, 8Kbyte x2, 32Kbyte, or 64Kbyte x15 sectors. It includes embedded algorithms for automatic program and erase operations, data polling via toggle bits (I/O7 and I/Os), and hardware protection methods to prevent inadvertent writes.
| Capacity (Byte Mode) | 1,048,576 bytes |
|---|---|
| Capacity (Word Mode) | 524,288 words |
| Operating Voltage Range | 2.7V to 3.6V |
| Access Times (Max) | 70ns / 90ns |
| Active Read Current | 9 mA typical |
| Program/Erase Current | 20 mA typical |
| Standby Current | 200 nA typical |
| Data Retention | 20 years at 125°C |
| Program/Erase Cycles | 100,000 per sector |
No, it is designed to be programmed in-system with just the standard 3.0V VCC supply.
The device is offered in 48-ball TFBGA, 44-pin SOP, and 48-Pin TSOP packages.
Completion can be detected by observing the RY/BY pin or by reading the I/O7 (Data Polling) and I/Os (toggle) status bits.
