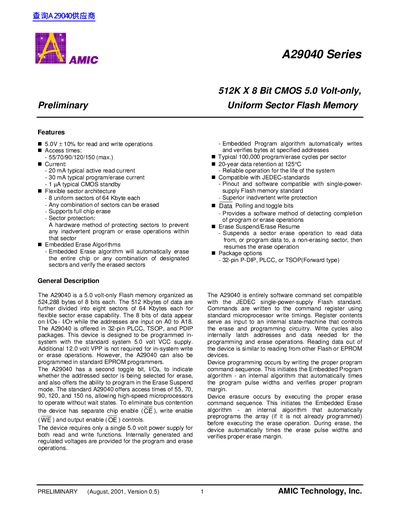

This document describes the features and characteristics of the A29040 series 512K x 8-bit CMOS 5.0 Volt-only Uniform Sector Flash Memory for 5.0V ± 10% read and write operations.
The document describes the A29040 Series, which is a 512 Kbyte (512K X 8 Bit) CMOS Flash Memory organized into eight uniform sectors of 64 Kbytes each. The device operates on a single 5.0 volt power supply for both read and write operations, eliminating the need for an additional programming voltage.
| Memory Capacity | 512K X 8 Bit (524,288 bytes) |
|---|---|
| Sector Architecture | Eight uniform sectors of 64 Kbyte each |
| Operating Voltage | +5.0V +/- 10% |
| Access Times (Max) | 55/70/90/120/150 ns |
| Active Read Current | 20 mA typical |
| Program/Erase Current | 30 mA typical |
| Data Retention | 20 years at 125°C |
| Program/Erase Cycles | 100,000 per sector |
No, it is designed to be programmed in-system with the standard 5.0 volt VCC supply.
The device is offered in 32-pin PLCC, TSOP, and PDIP packages.
Yes, any combination of the eight uniform sectors can be erased independently.
