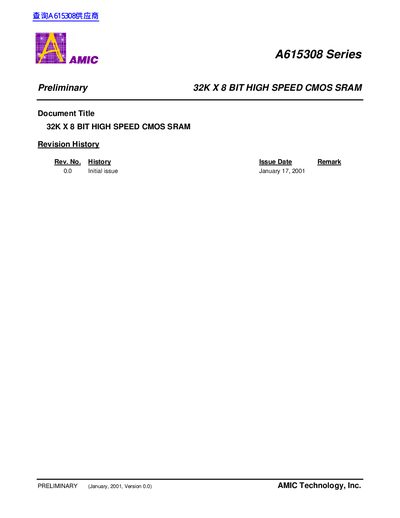

This document describes the features and characteristics of the A615308 series 32K X 8 BIT HIGH SPEED CMOS SRAM, such as single +5V power supply, access times, full static operation, TTL compatible inputs and outputs, etc.
The document details the specifications for the AMIC A615308 Series, a 262,144-bit static random access memory organized as 32,768 words by 8 bits. It is built using high-performance CMOS process and operates on a single +5V power supply with TTL-compatible inputs and outputs.
| Organization | 32,768 words x 8 bits |
|---|---|
| Power Supply | +5V |
| Access Time (Max) | 12 ns |
| Operating Current (Max) | 150 mA |
| Standby Current (Max) | 12 mA |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -55°C to +125°C |
The device guarantees data retention at a power supply voltage as low as 2V.
The A615308 series is available in 28-pin SOJ and TSOP packages.
