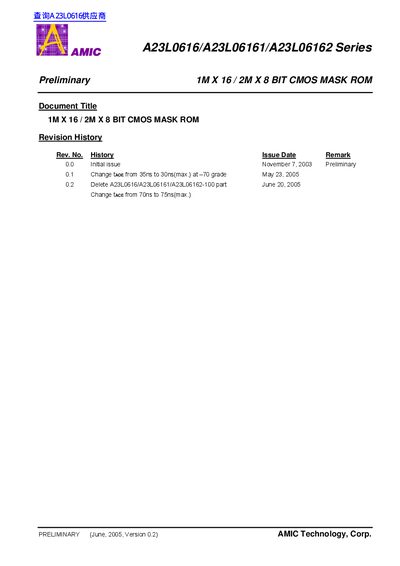

A23L0616/A23L06161/A23L06162 Series Preliminary 1M x 16 / 2M x 8 BIT CMOS MASK ROM.
This document is a preliminary datasheet for the AMIC A23L0616, A23L06161, and A23L06162 series of CMOS Mask ROMs. The devices offer 1M x 16 bit or 2M x 8 bit organizations and are designed with supply voltage ranges from 2.7V to 3.6V. Key features include direct TTL-compatible inputs and outputs, flash memory pinout compatibility with AMD and Intel, and full static operation. The chips are available in 44-pin SOP and 48-pin TSOP packages (forward and reverse types).
| Organization | 1M x 16 bit or 2M x 8 bit |
|---|---|
| Supply Voltage | 2.7V to 3.6V |
| Access Time | 70 ns (max.) |
| Operating Current | 40mA (typ.) |
| Operating Temperature | 0°C to +70°C |
| Package Types | 44-pin SOP, 48-pin TSOP |
The devices are available in 44-pin SOP and 48-pin TSOP packages.
The maximum access time is 70 ns for the A23L06161 variant.
