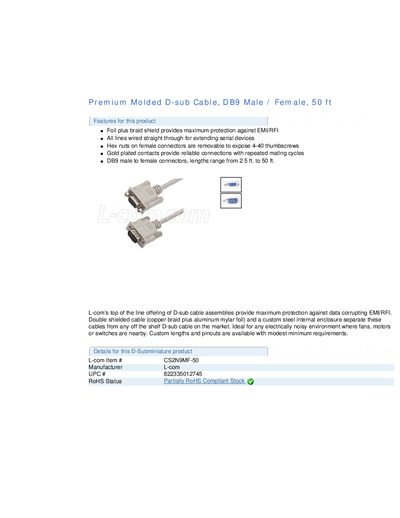

This document describes a premium molded D-sub cable with a length of 50 ft, designed for extending serial devices. It features a G foil plus braid shield for maximum protection against EMI/RFI, all lines wired straight through, removable hex nuts on female connectors, gold plated contacts for reliable connections, and DB9 male to female connectors.
The CS2N9MF-50 cable features a double‑shielded construction using copper braid and aluminum Mylar foil, 26 AWG stranded conductors, and a fully molded backshell with a stamped steel internal enclosure for maximum EMI/RFI protection. Gold‑plated contacts and 4‑40 thumbscrews ensure reliable mating cycles.
Lengths are available from 2.5 ft up to 50 ft, with a range of DB9, DB25, DB37, HD15 and other connector configurations. The product is partially RoHS compliant and can be ordered via L‑com item number CS2N9MF-50.
| Shielding | Double shielded (copper braid + aluminum Mylar foil) |
|---|---|
| Conductor gauge | 26 AWG stranded |
| Contacts | Gold plated |
| Length | 50 ft |
| RoHS compliance | Partially compliant |
It uses double shielding with copper braid and aluminum Mylar foil.
The cable is 50 ft long.
Yes, the contacts are gold plated for reliable connections.
