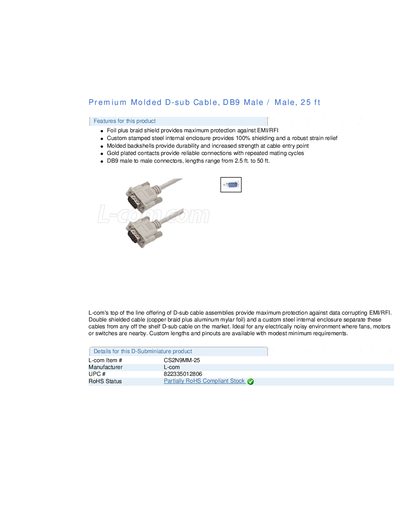

This product is a L-com DB9 male to male connector with double shielding and a length of 25 feet.
The Premium Molded D‑sub Cable offers maximum protection against EMI/RFI with a double shield (copper braid plus aluminum Mylar foil) and a custom stamped steel internal enclosure. Gold‑plated contacts ensure reliable connections over repeated mating cycles, and the molded backshell provides durability at the cable entry point.
Lengths range from 2.5 ft to 50 ft and are available in various connector configurations (DB9, DB25, HD15, etc.). Custom lengths and pinouts can be ordered with modest minimum requirements. The cable is partially RoHS compliant and suitable for electrically noisy environments such as those with fans, motors, or switches.
| Connector Type | DB9 male to male |
|---|---|
| Backshell | Molded steel internal enclosure |
| Contact Plating | Gold plated |
| Conductor Gauge | 26 AWG stranded |
| RoHS Status | Partially RoHS compliant |
The cable has DB9 male‑to‑male connectors.
The item number is CS2N9MM-25.
It is partially RoHS compliant.
